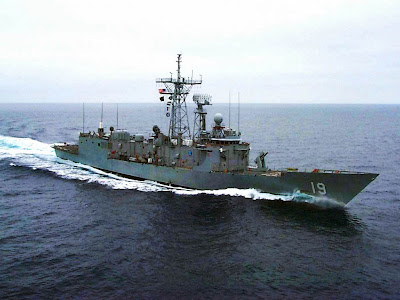

perry class frigates photos

The Oliver Hazard Perry class (sometimes referred to as the Perry class or FFG-7 class), is a class of frigates named after Commodore Oliver Hazard Perry. The class was designed in the United States in the mid-1970s as general-purpose escort vessels, capable of most naval operations, yet cheap enough to be bought in large quantities to replace World War II-era destroyers. 55 ships were built in the United States: 51 for the United States Navy and six for the Royal Australian Navy (only four remain in service). Additionally, 8 were built in Taiwan, 6 in Spain and 2 in Australia for their respective navies. Ex-USN ships have been acquired by the navies of Bahrain, Egypt, Poland and Turkey

Displacement: 4,100 long tons (4,200 t) full load
Length: 408 ft (124 m) waterline,
445 ft (136 m) overall,
453 ft (138 m) for "long-hull" units
Beam: 45 ft (14 m)
Draft: 22 ft (6.7 m)
Propulsion: 2 × General Electric LM2500-30 gas turbines generating 41,000 shp (31 MW) through a single shaft and variable pitch propeller; 2 x Auxiliary Propulsion Units, 350 hp (.25 MW) retractable electric azipods for maneuvering and docking.
Speed: 29+ knots (54+ km/h)
Range: 4,500 nmi (8,300 km) at 20 knots (40 km/h)
Complement: 176
Sensors and
processing systems: Radar: AN/SPS-49, AN/SPS-55, Mk 92 fire control system
Sonar: SQS-56, SQR-19 Towed Array
Electronic warfare
and decoys: SLQ-32(V)2, Flight III with sidekick,
Mark 36 SRBOC
AN/SLQ-25 Nixie
Armament: 1 × single-arm Mk 13 Missile Launcher with a 40-round magazine that can handle SM-1MR anti-air/ship missiles and Harpoon anti-ship missiles. Removed from U.S. ships starting in 2003, due to retirement of the SM-1 missile
2 × triple Mark 32 ASW torpedo tubes with Mark 46 or Mark 50 anti-submarine torpedoes
1 × OTO Melara 76 mm/62 caliber naval gun
1 × 20 mm Phalanx CIWS
8 × Hsiung Feng II SSM (Taiwanese units only)
Aircraft carried: 1 or 2 × anti-ship and -sub helicopters (the SH-2 Seasprite on short-hulls, the SH-60 Seahawk LAMPS III on long-hulls)
