Pyotr Velikiy missile cruiser project 1144

profile line drawing of Pyotr Velikiy peter the great

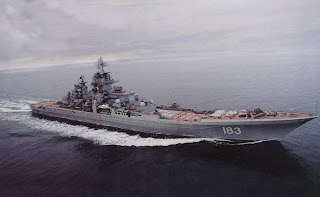

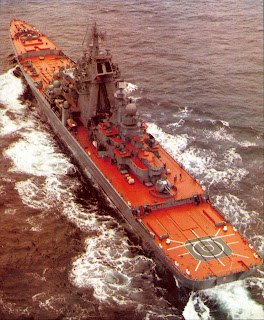

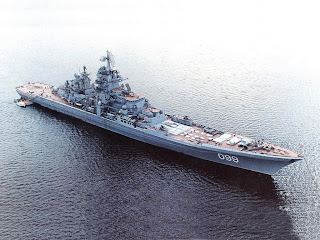

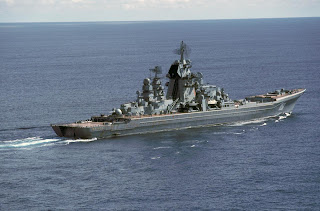

The Russian Navy Kirov class project 1144.2 RFS Pyotr Velikiy peter the great heavy Guided Missile Cruiser (Nuclear Powered) CGN
Displacement: 28,000 (Full Load)
Length: 252 m (830 feet)
Beam: 28.5 m (94 feet)
Draft: 9.1 m (30 feet)
Propulsion: 2-shaft CONAS, 2× KN-3 nuclear propulsion with 2× GT3A-688 steam turbines
140,000 shp
Speed: 32 knots (59 km/h)
Essentially unlimited with nuclear power at 20 knots (37 km/h)
Complement: 710
Sensors and
processing systems: Radars
Voskhod MR-800 (Top Pair) 3D search radar, foremast
Fregat MR-710 (Top Steer) 3D search radar, main mast
2 × Palm Frond navigation radar, foremast
Horse Jaw LF hull sonar

Horse Tail VDS (Variable Depth Sonar)
weapon: 20 P700 Granit Anti-ship missile (SS-N-19 Shipwreck)
96 S400 long-range air defense missile (SA-NX-20 Gargoyle)
192 9K311 Tor (SA-N-9 Gauntlet) point defense anti air missile
44 OSA-MA (SA-N-4 Gecko) PD SAM
2x RBU-1000 305 mm anit submarine rocket launchers
2x RBU-12000 (Udav-1) 254 mm ASW rocket launchers
1 twin AK-130 naval gun
10 533 mm ASW/ASuW torpedo tubes, Type 53 torpedo or SS-N-15 ASW missile
6x CADS-N-1 Kashtan missile/gun system (Nakhimov, Pyotr Velikhy)
Armour: 76 mm plating around reactor compartment, light splinter protection
Aircraft carried: 3 helicopters
Aviation facilities: Below-deck hangar
